Permalloy 1J46/Anhyster DS/Superanhyster 50/Alloy 48SL/ Alloy 48Rotor
Permalloy 1J46 Material grades and equivalents
|
Trademark |
IMPHY |
VAC |
Telcan |
USA Magnetics |
USA Carpenter |
Japan |
|
1J46 |
Anhyster DS/Superanhyster 50/ |
Permenorm 5000 H2/Permenorm 5050 H2 |
Radiometal R4550/Radiometal SR |
Alloy 48SL Alloy 48Rotor |
High Permability 45 High Permability 49 |
PB-1 PB-2 |
Chemical composition:
|
Grade |
Chemical composition(%) |
|||||||||
|
C |
P |
S |
Mn |
Si |
Ni |
Cr |
Mo |
Cu |
Fe |
|
|
Max |
||||||||||
|
1J46 |
0.03 |
0.020 |
0.020 |
0.60~1.00 |
0.15~0.30 |
45.0~47.0 |
≤0.20 |
Rest |
||
Characteristic as below：
1J46 is about 50% nickel-iron soft magnetic alloy, with high permeability, high magnetic induction and low coercivity.
Processing conditions and application:
1J46 is suitable for primary and secondary power transformers, micro-motor rotor, relays, electromagnetic clutches, torque motor street iron, barrier shielded magnetic shield, electronic stepper motor wire frame, electronic clock stator, buzzer vibrator and telephone components.
|
Regular shape for all kinds of alloys |
|||
|
Form |
Specification |
Supply Form |
Others |
|
Sheet |
Thickness：0.40-4.75mm，General Width：1000、1219、1500mm |
Whole Coil or piece of it |
Cold Annealed，Surface 2B、2E |
|
Plate |
Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled） |
Whole Coil or piece of it |
Single hot rolling，Solid solution annealed state，Surface 1D |
|
Belt |
Thickness：0.10-3.0mm，Width：50-500mm |
Whole Coil or Specified size |
Cold Annealed，Surface 2B、2E |
|

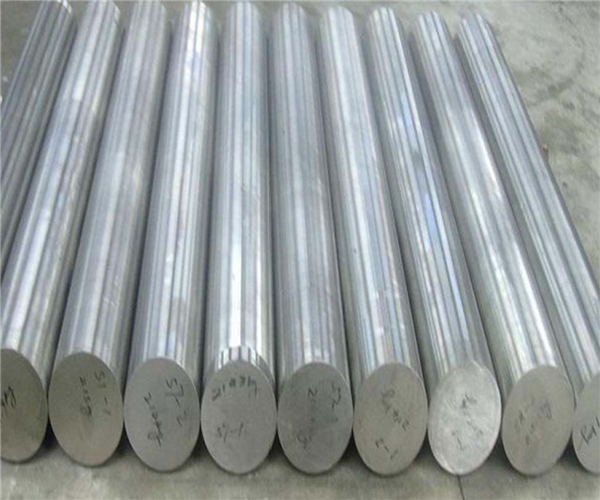

Bar & Rod |
Rolled barΦ5-45mm，Length≤1500mm |
Polished Bar（circle、Square） |
Solution annealing,descaling |
|
Forged barΦ26-245mm，Length≤4000mm |
|||
|
Weld tube |
Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm |
Base on your requirement |
|
|
Seamless Tube |
Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm |
Base on your requirement |
|
|
Wire |
Outer diameterΦ0.1-13mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Forged piece |
discs,rings,squares,blocks,slabs |
Base on your requirement |
Steel, Alloy |
|
Flangs |
All kinds of Flangs |
Base on your requirement |
Steel, Alloy |
|
Welding Material |
Coil wire Φ0.025mm-1.6mm |
Base on your requirement |
Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France. |
|
Straight WireΦ1.6mm-4.0mm |
|||
|
Welding rodΦ1.2mm-4.0mm |
|||
|
Tube |
Elbow, three links, four links, different diameter size |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Explosive bonded laminate |
Raw Sheet Thickness≥2mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy
|
