Permalloy Alloy42/UNS K94100/WS 1.3917/Ni42/
Permalloy Alloy42 material grades and equivalents
|
Trademark |
GB |
AISI/ASTM |
UNS |
W.Nr |
BS |
AFNOR |
IMPHY |
VAC |
Telcan |
USA Magnetics |
Japan |
|
Alloy 42 |
4J42 |
USA(ASTM)Glass sealing 42 / Uniseal 42 |
UNS K94100 |
WS 1.3917 |
Ni42 |
Germany: Vacodil 42 / Nilo 42 |
Dumet42 / DIN 17745 AFNOR NF A54-301 |
Vacodil 42 |
Nilo 42 |
Glass sealing 42 |
D |
Chemical composition:
|
Grade |
C% |
P% |
S% |
Mn% |
Si% |
Al% |
Co% |
Ni% |
Fe% |
|
Alloy 42 |
Max 0.05 |
Max 0.020 |
Max 0.020 |
Max 0.80 |
Max 0.30 |
Max 0.10 |
Max 1.0 |
41.0-42.5 |
Bal. |
Mechanical properties:
|
Grade |
Tensile Strength N/mm² |
|
|
Soft |
Hard |
|
|
Alloy 42 |
<590 |
>700 |
Characteristic as below：
Permalloy Alloy42 is a nickel-iron controlled-expansion alloy containing 41% nickel. It has a low and nominally constant coefficient of thermal expansion from room temperature to about 300°C.
Processing conditions and application:
Used for glass-to-metal sealing of components that are enclosed in a glass envelope, such as lamps and electron tubes.
|
Regular shape for all kinds of alloys |
|||
|
Form |
Specification |
Supply Form |
Others |
|
Sheet |
Thickness：0.40-4.75mm，General Width：1000、1219、1500mm |
Whole Coil or piece of it |
Cold Annealed，Surface 2B、2E |
|
Plate |
Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled） |
Whole Coil or piece of it |
Single hot rolling，Solid solution annealed state，Surface 1D |
|
Belt |
Thickness：0.10-3.0mm，Width：50-500mm |
Whole Coil or Specified size |
Cold Annealed，Surface 2B、2E |
|
Bar & Rod |
Rolled barΦ5-45mm，Length≤1500mm |
Polished Bar（circle、Square） |
Solution annealing,descaling |
|
Forged barΦ26-245mm，Length≤4000mm |
|||
|
Weld tube |
Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm |
Base on your requirement |
|
|
Seamless Tube |
Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm |
Base on your requirement |
|
|

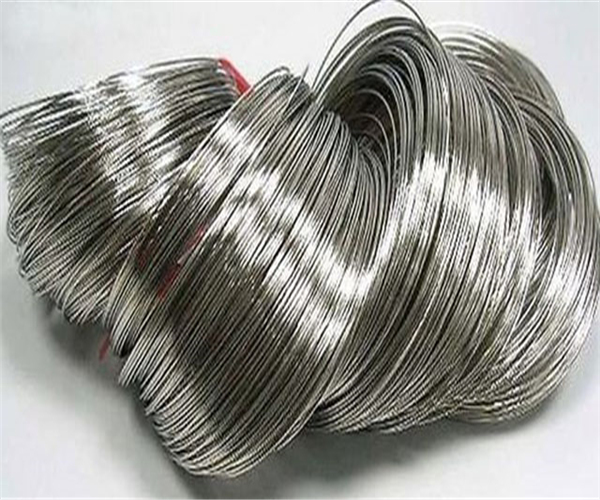

Wire |
Outer diameterΦ0.1-13mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Forged piece |
discs,rings,squares,blocks,slabs |
Base on your requirement |
Steel, Alloy |
|
Flangs |
All kinds of Flangs |
Base on your requirement |
Steel, Alloy |
|
Welding Material |
Coil wire Φ0.025mm-1.6mm |
Base on your requirement |
Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France. |
|
Straight WireΦ1.6mm-4.0mm |
|||
|
Welding rodΦ1.2mm-4.0mm |
|||
|
Tube |
Elbow, three links, four links, different diameter size |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Explosive bonded laminate |
Raw Sheet Thickness≥2mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
