Shielded Magnetic Alloy 1J50
1J50 Material grades and equivalents;
|
Trademark |
IMPHY |
VAC |
Telcan |
USA Magnetics |
USA Carpenter |
|
1J50 |
Rectimply |
Permenorm 5000 Z |
HCR SR |
Square Orthonol |
HyRa 49 |
1J50 Chemical composition
|
Grade |
Chemical composition(%) |
|||||||||
|
C |
P |
S |
Mn |
Si |
Ni |
Cr |
Mo |
Cu |
Fe |
|
|
Max |
||||||||||
|
1J50 |
0.03 |
0.020 |
0.020 |
0.30~0.60 |
0.15~0.30 |
49.0~51.0 |
≤0.20 |
Rest |
||
1J50 Characteristic as below;
1J50 is about 50% nickel-iron soft magnetic alloy, with high permeability, high magnetic induction and low coercivity.
Processing conditions and application:

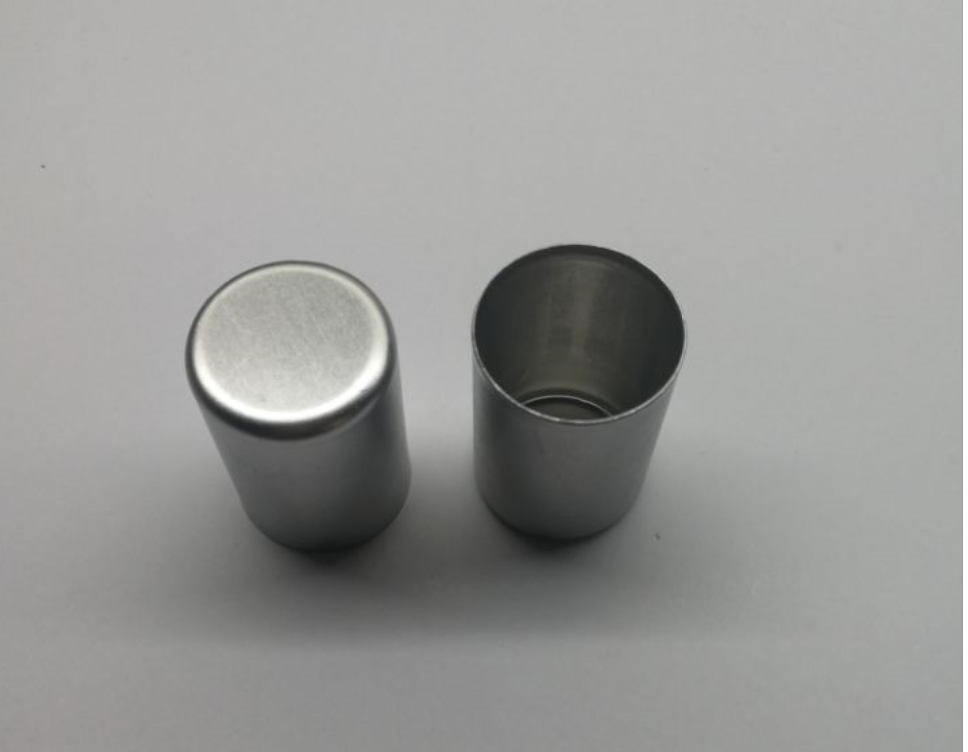

1J50 is suitable for primary and secondary power transformers, micro-motor rotor, relays, electromagnetic clutches, torque motor street iron, barrier shielded magnetic shield, electronic stepper motor wire frame, electronic clock stator, buzzer vibrator and telephone components.
1J50 has rectangular hysteresis loop and high saturation magnetic induction, is mainly used to worked at a moderate magnetic field magnetic amplifier, choke ring, rectifier circle, as well as the computer device components.
| Regular shape for all kinds of alloys | |||
| Form | Specification | Supply Form | Others |
| Sheet | Thickness：0.40-4.75mm，General Width：1000、1219、1500mm | Whole Coil or piece of it | Cold Annealed，Surface 2B、2E |
| Plate | Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled） | Whole Coil or piece of it | Single hot rolling，Solid solution annealed state，Surface 1D |
| Belt | Thickness：0.10-3.0mm，Width：50-500mm | Whole Coil or Specified size | Cold Annealed，Surface 2B、2E |
| Bar & Rod | Rolled barΦ5-45mm，Length≤1500mm | Polished Bar（circle、Square） | Solution annealing,descaling |
| Forged barΦ26-245mm，Length≤4000mm | |||
| Weld tube | Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm | Base on your requirement | |
| Seamless Tube | Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm | Base on your requirement | |
| Wire | Outer diameterΦ0.1-13mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Forged piece | discs,rings,squares,blocks,slabs | Base on your requirement | Steel, Alloy |
| Flangs | All kinds of Flangs | Base on your requirement | Steel, Alloy |
| Welding Material | Coil wire Φ0.025mm-1.6mm | Base on your requirement | Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France. |
| Straight WireΦ1.6mm-4.0mm | |||
| Welding rodΦ1.2mm-4.0mm | |||
| Tube | Elbow, three links, four links, different diameter size | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Explosive bonded laminate | Raw Sheet Thickness≥2mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
