Cobalt Alloy HY HA242 /Haynes 242/UNS N10242
HY HA242 Material grades and equivalents :Haynes 242
Chemical composition:
|
Ni |
Co |
Cr |
Mo |
Zr |
|
60 |
2.5 |
8 |
25 |
- |
Characteristic as below:
HY HA242 /Haynes 242 alloy /UNS N10242 is an age-hardenable nickel-molybdenum chromium alloy which derives its strength from a long-range ordering reaction upon aging. It has tensile and creep strength properties up to 1300°F (705°C) which are as much as double those for solid solution strengthened alloys, but with high ductility in the aged condition. The thermal expansion characteristics of 242 alloy are much lower than those for most other alloys, and it has very good oxidation resistance up to 1500°F (815°C). Other attractive features include excellent low cycle fatigue properties, very good thermal stability, and resistance to high-temperature fluorine and fluoride environments.
Processing conditions and application:
HY HA242 /Haynes 242 alloy has very good forming and welding characteristics in the annealed condition. It may be forged or otherwise hot-worked by conventional techniques, and it is readily cold formable. Welding may be performed in the annealed condition by standard gas tungsten arc (GTAW) or gas metal arc (GMAW) techniques.
|
Regular shape for all kinds of alloys |
|||
|
Form |
Specification |
Supply Form |
Others |
|
Sheet |
Thickness：0.40-4.75mm，General Width：1000、1219、1500mm |
Whole Coil or piece of it |
Cold Annealed，Surface 2B、2E |
|
Plate |
Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled） |
Whole Coil or piece of it |
Single hot rolling，Solid solution annealed state，Surface 1D |
|
Belt |
Thickness：0.10-3.0mm，Width：50-500mm |
Whole Coil or Specified size |
Cold Annealed，Surface 2B、2E |
|
Bar & Rod |
Rolled barΦ5-45mm，Length≤1500mm |
Polished Bar（circle、Square） |
Solution annealing,descaling |
|
Forged barΦ26-245mm，Length≤4000mm |
|||
|
Weld tube |
Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm |
Base on your requirement |
|
|

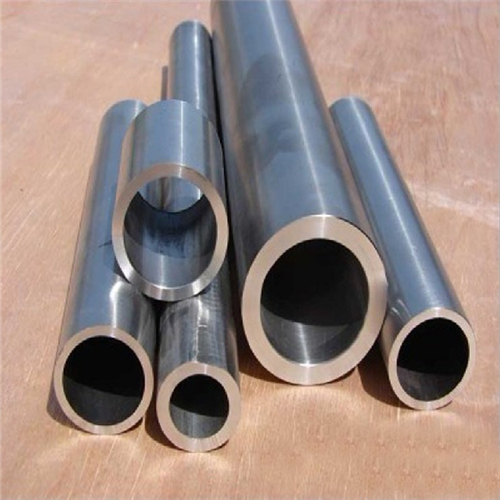

Seamless Tube |
Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm |
Base on your requirement |
|
|
Wire |
Outer diameterΦ0.1-13mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Forged piece |
discs,rings,squares,blocks,slabs |
Base on your requirement |
Steel, Alloy |
|
Flangs |
All kinds of Flangs |
Base on your requirement |
Steel, Alloy |
|
Welding Material |
Coil wire Φ0.025mm-1.6mm |
Base on your requirement |
Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France. |
|
Straight WireΦ1.6mm-4.0mm |
|||
|
Welding rodΦ1.2mm-4.0mm |
|||
|
Tube |
Elbow, three links, four links, different diameter size |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Explosive bonded laminate |
Raw Sheet Thickness≥2mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
