Permalloy 1J51/H.C.R/Sendelta/Miver
Permalloy 1J51 Material grades and equivalents
|
Trademark |
IMPHY |
VAC |
Telcan |
USA Magnetics |
Japan |
|
1J51 |
Rectimply |
Permenorm 5000 Z |
H.C.R |
Miver |
Sendelta |
Chemical composition:
|
Grade |
C |
P |
S |
Ni |
Si |
Mn |
Cu |
Fe |
| Max | ||||||||
|
1J51 |
0.03 |
0.020 |
0.020 |
40.0~51.0 |
0.15~0.30 |
0.30~0.60 |
≤0.20 |
Rest |
Characteristic as below：
1J51 is a kind of soft magnetic alloy which has anisotropic structure and special magnetic properties. The hysteresis and loop of 1J51 are nearly rectangular, the square coefficient is larger than 0.85, and the permeability is high And saturation magnetic flux density, low coercivity.
Processing conditions and application:
1J51 applies to small power high sensitive magnetic amplifier, pulse transformer magnetic governor in the core and beeper vibration piece.
|
Regular shape for all kinds of alloys |
|||
|
Form |
Specification |
Supply Form |
Others |
|
Sheet |
Thickness：0.40-4.75mm，General Width：1000、1219、1500mm |
Whole Coil or piece of it |
Cold Annealed，Surface 2B、2E |
|
Plate |
Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled） |
Whole Coil or piece of it |
Single hot rolling，Solid solution annealed state，Surface 1D |
|
Belt |
Thickness：0.10-3.0mm，Width：50-500mm |
Whole Coil or Specified size |
Cold Annealed，Surface 2B、2E |
|

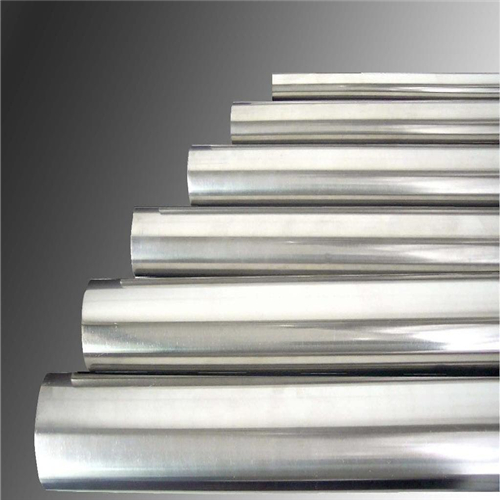

Bar & Rod |
Rolled barΦ5-45mm，Length≤1500mm |
Polished Bar（circle、Square） |
Solution annealing,descaling |
|
Forged barΦ26-245mm，Length≤4000mm |
|||
|
Weld tube |
Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm |
Base on your requirement |
|
|
Seamless Tube |
Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm |
Base on your requirement |
|
|
Wire |
Outer diameterΦ0.1-13mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Forged piece |
discs,rings,squares,blocks,slabs |
Base on your requirement |
Steel, Alloy |
|
Flangs |
All kinds of Flangs |
Base on your requirement |
Steel, Alloy |
|
Welding Material |
Coil wire Φ0.025mm-1.6mm |
Base on your requirement |
Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France. |
|
Straight WireΦ1.6mm-4.0mm |
|||
|
Welding rodΦ1.2mm-4.0mm |
|||
|
Tube |
Elbow, three links, four links, different diameter size |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Explosive bonded laminate |
Raw Sheet Thickness≥2mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
