Permalloy 1J79 /Permimphy 1/Ultraperm 300/HyMu 80Ⅱ
Permalloy 1J79 Material grades and equivalents
|
Trademark |
FRANCE |
VAC |
Japan |
Telcan |
Carpenter |
Magnetics |
|
1J79 |
Mumetal Permimphy 1 Permimphy 2 Permimphy 5 Permimphy 6 Permimphy C |
Mumetal Vacoperm Ultraperm 10 Ultraperm 200 Ultraperm 300 Ultraperm F80 Ultraperm 200TK Ultraperm Z |
PC-2 PC-22 PC-81 |
Mumetal M2, M2+ Supermumetal SM2 Supermumetal SM150, 250
Supermumetal SM300 |
HyMu 80 HyMu 77 HyMu 80Ⅱ HyRa 80 |
Mumetal Round Permalloy 80 Supermalloy Square Permalloy 80 |
Chemical composition:
|
Alloy |
C |
P |
S |
Mn |
Si |
Ni |
Cr |
Mo |
Cu |
Fe |
|
Max |
||||||||||
|
1J79 |
0.03 |
0.02 |
0.02 |
0.6-1.1 |
0.3-0.5 |
78.5-80 |
- |
3.8-4.1 |
<=0.2 |
REST |
Characteristic as below：
With high initial permeability and the maximum magnetic permeability and low coercive force .
Processing conditions and application:
Permalloy 1J79 is suitable for producing pulse transformer, high sensitive relay, magnetic amplifier, choke coil, etc.
|
Regular shape for all kinds of alloys |
|||
|
Form |
Specification |
Supply Form |
Others |
|
Sheet |
Thickness：0.40-4.75mm，General Width：1000、1219、1500mm |
Whole Coil or piece of it |
Cold Annealed，Surface 2B、2E |
|
Plate |
Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled） |
Whole Coil or piece of it |
Single hot rolling，Solid solution annealed state，Surface 1D |
|
Belt |
Thickness：0.10-3.0mm，Width：50-500mm |
Whole Coil or Specified size |
Cold Annealed，Surface 2B、2E |
|

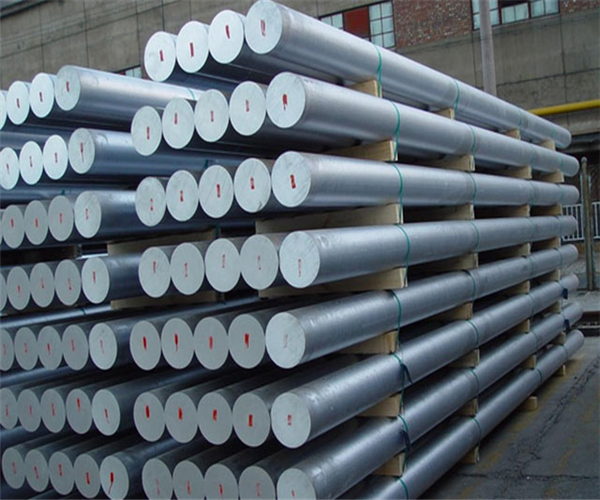

Bar & Rod |
Rolled barΦ5-45mm，Length≤1500mm |
Polished Bar（circle、Square） |
Solution annealing,descaling |
|
Forged barΦ26-245mm，Length≤4000mm |
|||
|
Weld tube |
Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm |
Base on your requirement |
|
|
Seamless Tube |
Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm |
Base on your requirement |
|
|
Wire |
Outer diameterΦ0.1-13mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Forged piece |
discs,rings,squares,blocks,slabs |
Base on your requirement |
Steel, Alloy |
|
Flangs |
All kinds of Flangs |
Base on your requirement |
Steel, Alloy |
|
Welding Material |
Coil wire Φ0.025mm-1.6mm |
Base on your requirement |
Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France. |
|
Straight WireΦ1.6mm-4.0mm |
|||
|
Welding rodΦ1.2mm-4.0mm |
|||
|
Tube |
Elbow, three links, four links, different diameter size |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
|
Explosive bonded laminate |
Raw Sheet Thickness≥2mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
