Cemented carbide YG8C /ISO G15
YG8C Material grades and equivalents: ISO G15
Chemical composition(mass fraction)(%)
Alloy |
WC |
TiC |
TaC (NbC) |
Co |
Other |
YG8C |
92 |
- |
- |
8 |
- |
Physical properties &minimum mechanical properties
Density/ g/cm |
Min Hardness/HRA |
Tensile strength/MPa |
Impact toughness j/cm |
Min Bending strength/ N/cm2 |
|
14.5-14.9 | 88 | 1750 |
3 |
- |
YG8C Characteristic as below:
It is a coarse grain tungsten carbide alloy, and its performance and wear resistance are similar to that of YG11C.
YG8C Processing conditions and application:
For percussive rotary drill bit. Cutting the teeth of a coal carrying machine with hard rock, an oil well drill, a hard stone processing tool, and a steel bar and steel tube stretching die for large compression rate.
Regular shape for all kinds of alloys |
|||
Form |
Specification |
Supply Form |
Others |
Sheet |
Thickness:0.40-4.75mm,General Width:1000、1219、1500mm |
Whole Coil or piece of it |
Cold Annealed,Surface 2B、2E |
Plate |
Thickness:4.76-60mm,Width:1500、2000、2500mm,Length:3000、6000、8000、8500mm(Under 10mm plate can be coiled) |
Whole Coil or piece of it |
Single hot rolling,Solid solution annealed state,Surface 1D |
Belt |
Thickness:0.10-3.0mm,Width:50-500mm |
Whole Coil or Specified size |
Cold Annealed,Surface 2B、2E |
Bar & Rod |
Rolled barΦ5-45mm,Length≤1500mm |
Polished Bar(circle、Square) |
Solution annealing,descaling |
Forged barΦ26-245mm,Length≤4000mm |
|||
Weld tube |
Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm |
Base on your requirement |
|

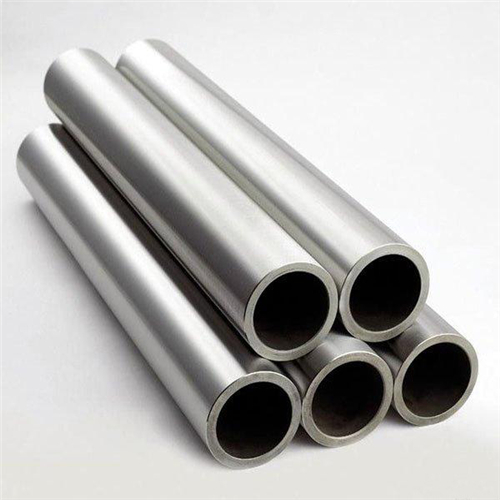

Seamless Tube |
Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm |
Base on your requirement |
|
Wire |
Outer diameterΦ0.1-13mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
Forged piece |
discs,rings,squares,blocks,slabs |
Base on your requirement |
Steel, Alloy |
Flangs |
All kinds of Flangs |
Base on your requirement |
Steel, Alloy |
Welding Material |
Coil wire Φ0.025mm-1.6mm |
Base on your requirement |
Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France. |
Straight WireΦ1.6mm-4.0mm |
|||
Welding rodΦ1.2mm-4.0mm |
|||
Tube |
Elbow, three links, four links, different diameter size |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
Explosive bonded laminate |
Raw Sheet Thickness≥2mm |
Base on your requirement |
Ni & Ni alloy, Ti & Ti alloy |
